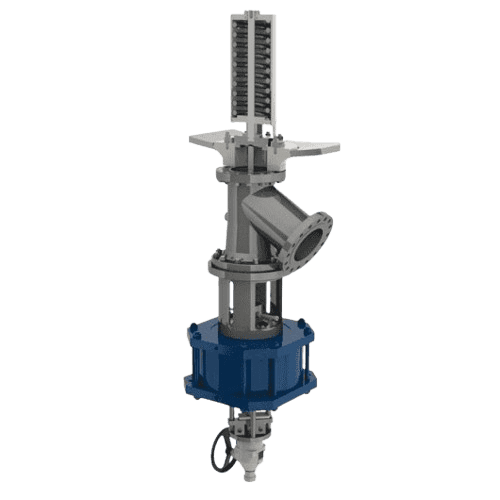

SchuF & Fetterolf Tank Emergency Shut-off (TESO) Valve

SchuF & Fetterolf Tank Emergency Shut-off (TESO) Valve

SchuF Tank Emergency Shut-Off (TESO) valves ensure that your storage tank seals quickly and safely in the event of an emergency loss of power or natural disaster. Available in disc, lift plug, or bottom-outlet variations, SchuF TESO valves are designed to close on the failure of power or valve damage, protecting against process loss and hazards to personnel and the environment.

Design Parameters

Pressure Class:ASME Class 150-600
Temperature:Material dependent
Dimensions:DN25 – DN600
Size Range:1" – 24"
Certification:PED, ISO 9001, API 598
Material:Stainless Steel, Carbon Steel, Alloy Steels
  • Tank bottom isolation
  • Emergency shut‑off for hazardous liquids
  • Petrochemical and chemical storage

Frequently Asked Questions

Find quick answers to some of the most common questions

How do SchuF TESO valves protect bulk storage tanks during piping failure?

SchuF TESO valves feature an in-lying sealing disc located inside the tank shell. If external piping or the actuator is damaged, the internal disc remains tightly seated, preventing product loss.

Do SchuF Tank Emergency Shut-Off valves comply with API 625?

Yes. Models 73BH, 73ID, and 73SL meet API 625 requirements for in-tank emergency isolation in refrigerated liquefied gas storage systems (LNG, LPG, ammonia).

How does a TESO valve close during a power or pneumatic failure?

The valve is held open by air or hydraulic pressure. When power or pressure fails, a counterweight or spring automatically drives the internal disc closed.

How does the TESO valve design withstand earthquakes and seismic movement?

SchuF uses a patented spherical pendulum joint that allows counterweights to swing freely during seismic events, preventing binding and structural damage to the tank roof.

How are fugitive emissions prevented in toxic or cryogenic liquid storage?

Valves feature hermetically sealed metallic bellows on the spindle, backed by a secondary emergency stuffing box to maintain zero-leakage performance under extreme thermal cycling.
